Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
Deep-groove ball bearing type 6205-2RS shaft ø 25mm ED ø 52mm W
Microswitch with handle with a switch 250V 16A 1CO connection ma
Rotary switch 2 1-2 sets of contacts 8 type T0-4-969I/E 400V 16A
Momentary push switch mounting measurements ø22mm black 1NC OFF
Momentary push switch mounting measurements ø22mm white 1NO I mo
Dough hook thread M24x2 usable height 360mm 50 S-C-F
Microswitch plastic 2NC 400V 3A L 104mm W 31mm H 31mm protection
Toothed chain drive DIN/ISO 06 B-1 splitting 3/8" teeth 110 shaf
Chain DIN/ISO 10 B-1 splitting 5/8" / 15.875mm links 33 internal
Spindle D1 ø 30mm for dough hook ø 25mm L 160mm 50 S-C-F D2 ø 40
Connector single DIN/ISO 10 B-1 splitting 5/8" links 1 L 29,5mm

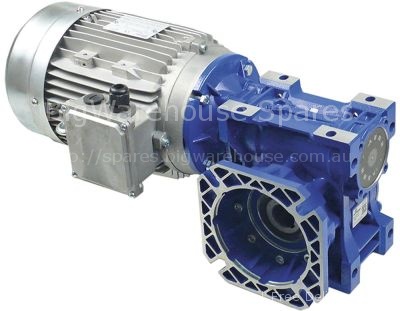

Gear motor 2200W 230-400V voltage AC 50Hz 1420rpm L 520mm W 250m
