IM25F Ver:Vers1 Parts List
Motor 2 speeds W 400V 50Hz 3 phase shaft ø 19mm flange ø 160mm 1
Motor 2 speeds W 400V 50Hz 3 phase shaft ø 19mm flange ø 160mm 1
Deep-groove ball bearing type 6006-2RS shaft ø 30mm ED ø 55mm W
Deep-groove ball bearing type 6006-2RS shaft ø 30mm ED ø 55mm W
Microswitch with handle with a switch 250V 16A 1CO connection ma
Microswitch with handle with a switch 250V 16A 1CO connection ma
Connector single DIN/ISO 06 B-1 splitting 3/8" links 1 L 17,8mm
Connector single DIN/ISO 06 B-1 splitting 3/8" links 1 L 17,8mm
Bearing block mounting pos. upper ø 120mm ID ø 47mm H 48mm 25-38
Bearing block mounting pos. upper ø 120mm ID ø 47mm H 48mm 25-38
Bearing block for dough hook mounting pos. upper ø 121mm ID ø 47
Bearing block for dough hook mounting pos. upper ø 121mm ID ø 47
Motor 1100W 230V 50Hz 1 phase shaft ø 19mm flange ø 160mm 1400rp
Motor 1100W 230V 50Hz 1 phase shaft ø 19mm flange ø 160mm 1400rp
Roller chain DIN/ISO 08 B-1 splitting 1/2" / 12.7mm links 33
Roller chain DIN/ISO 08 B-1 splitting 1/2" / 12.7mm links 33
coupling with drive shaft 50mm H 135mm shaft intake 20mm 25-38 C
coupling with drive shaft 50mm H 135mm shaft intake 20mm 25-38 C

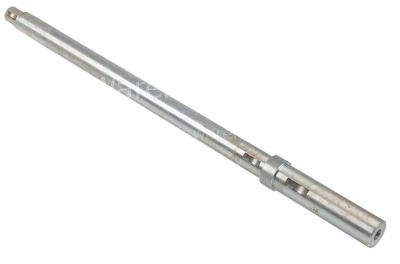

Drive shaft D1 ø 25mm ø 28mm L 464mm 25 C-F D2 ø 20mm edition si
Drive shaft D1 ø 25mm ø 28mm L 464mm 25 C-F D2 ø 20mm edition si
Spindle D1 ø 25mm for dough hook ø 20mm L 150mm 25-38 C-F D2 ø 3
Spindle D1 ø 25mm for dough hook ø 20mm L 150mm 25-38 C-F D2 ø 3
Drive shaft D1 ø 25mm ø 28mm L 530mm 25 C-F D2 ø 20mm edition un
Drive shaft D1 ø 25mm ø 28mm L 530mm 25 C-F D2 ø 20mm edition un
