Mounting flange ø 380mm ID ø 168mm thickness 4mm 25 C
Drive shaft D1 ø 25mm for dough hook L 82mm D2 ø 30mm IT M18x1.5
Mixer bowl for dough mixer ID ø 450mm H 260mm detachable 38 C
Gas tension spring for dough mixer 700N hub 90mm D1 ø 19mm D2 ø
Drive flange ø 330mm ID ø 60mm thickness 4mm 25-38 C

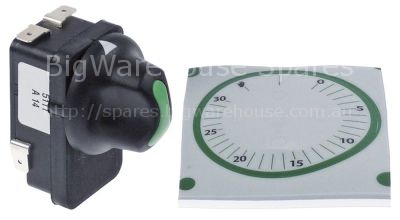

Timer G 2-pole operation time 30min impulse mechanical 2NO at 25
