38-CNS-Cookmax Ver:Vers2 Parts List
Momentary push switch mounting measurements ø22mm white 1NO I mo
Momentary push switch mounting measurements ø22mm white 1NO I mo
Deep-groove ball bearing type 6004-2RS shaft ø 20mm ED ø 42mm W
Deep-groove ball bearing type 6004-2RS shaft ø 20mm ED ø 42mm W
Bearing block for mixer bowl mounting pos. lower ø 145mm ID ø 42
Bearing block for mixer bowl mounting pos. lower ø 145mm ID ø 42
Deep-groove ball bearing type 6005-2RS shaft ø 25mm ED ø 47mm W
Deep-groove ball bearing type 6005-2RS shaft ø 25mm ED ø 47mm W
Microswitch plastic 2NC 400V 3A L 104mm W 31mm H 31mm protection
Microswitch plastic 2NC 400V 3A L 104mm W 31mm H 31mm protection
Pastry rod L 367mm W 25mm thickness 12mm hole distance 45mm hole
Pastry rod L 367mm W 25mm thickness 12mm hole distance 45mm hole
Sprocket-wheel DIN/ISO 08 B-1 splitting 1/2" teeth 29 shaft inta
Sprocket-wheel DIN/ISO 08 B-1 splitting 1/2" teeth 29 shaft inta

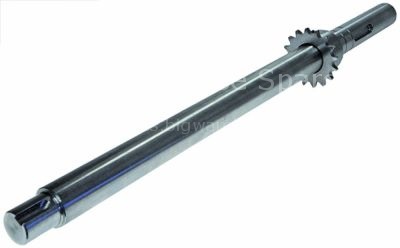

Drive shaft ø 25mm with toothed chain drive L 465mm teeth 16
Drive shaft ø 25mm with toothed chain drive L 465mm teeth 16
Bearing block mounting pos. upper ø 120mm ID ø 47mm H 48mm 25-38
Bearing block mounting pos. upper ø 120mm ID ø 47mm H 48mm 25-38
Roller chain DIN/ISO 08 B-1 splitting 1/2" / 12.7mm links 34
Roller chain DIN/ISO 08 B-1 splitting 1/2" / 12.7mm links 34

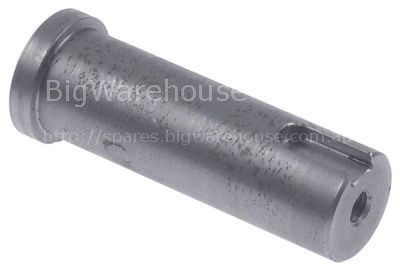

Drive shaft D1 ø 25mm for dough hook L 82mm D2 ø 30mm IT M18x1.5
Drive shaft D1 ø 25mm for dough hook L 82mm D2 ø 30mm IT M18x1.5
