Parts List

Exploded diagrams, Schematics and other documents

Click on an image to enlarge the exploded view

SBG7-10 Ver:199609- Parts List

  • Version
Bearing block for spindle

Bearing block for spindle

Ref: Pg:7 Item:025

Bearing block for spindle

more info
Grub screw thread M8 L 16mm DIN 914/ISO 4027 intake internal hex

Grub screw thread M8 L 16mm DIN 914/ISO 4027 intake internal hex

Ref: Pg:7 Item:024

Grub screw thread M8 L 16mm DIN 914/ISO 4027 intake internal hex

more info
Lid hinge body

Lid hinge body

Ref: Pg:4 Item:009

Lid hinge body

more info
Inlet spout connection 1/2" ET tube ø 14mm projection 110mm over

Inlet spout connection 1/2" ET tube ø 14mm projection 110mm over

Ref: Pg:15 Item:013

Inlet spout connection 1/2" ET tube ø 14mm projection 110mm over

more info
Sleeve for hand wheel

Sleeve for hand wheel

Ref: Pg:7 Item:026

Sleeve for hand wheel

more info
Bush for spindle ID ø 18mm ED ø 30mm L 45mm

Bush for spindle ID ø 18mm ED ø 30mm L 45mm

Ref: Pg:7 Item:017

Bush for spindle ID ø 18mm ED ø 30mm L 45mm

more info
Ignition pipe L 177mm ø 20mm

Ignition pipe L 177mm ø 20mm

Ref: Pg:10 Item:009

Ignition pipe L 177mm ø 20mm

more info
Nut thread 3/8" H 8,5mm WS 22 SS Qty 1 pcs

Nut thread 3/8" H 8,5mm WS 22 SS Qty 1 pcs

Ref: Pg:7 Item:011

Nut thread 3/8" H 8,5mm WS 22 SS Qty 1 pcs

more info
Bar L 200mm ø 8mm

Bar L 200mm ø 8mm

Ref: Pg:13 Item:013

Bar L 200mm ø 8mm

more info
Spindle for spindle L 165mm

Spindle for spindle L 165mm

Ref: Pg:7 Item:022

Spindle for spindle L 165mm

more info
Spindle nut thread TR26x8 ø 35mm

Spindle nut thread TR26x8 ø 35mm

Ref: Pg:7 Item:013

Spindle nut thread TR26x8 ø 35mm

more info
Thrust ball bearing shaft ø 20mm ED ø 40mm W 14mm type 51204 DIN

Thrust ball bearing shaft ø 20mm ED ø 40mm W 14mm type 51204 DIN

Ref: Pg:7 Item:021

Thrust ball bearing shaft ø 20mm ED ø 40mm W 14mm type 51204 DIN

more info
Spindle thread TR26x8 L 525mm ø 26mm total length 565mm for tilt

Spindle thread TR26x8 L 525mm ø 26mm total length 565mm for tilt

Ref: Pg:7 Item:014

Spindle thread TR26x8 L 525mm ø 26mm total length 565mm for tilt

more info
Drain pan L 11mm W 30mm H 25mm

Drain pan L 11mm W 30mm H 25mm

Ref: Pg:4 Item:034

Drain pan L 11mm W 30mm H 25mm

more info
Hand wheel ø 200mm D1 ø 48mm bore ø 20mm thread M8 hole distance

Hand wheel ø 200mm D1 ø 48mm bore ø 20mm thread M8 hole distance

Ref: Pg:7 Item:023

Hand wheel ø 200mm D1 ø 48mm bore ø 20mm thread M8 hole distance

more info

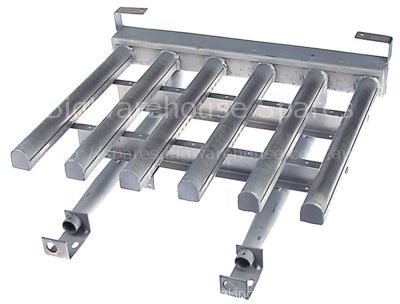

Bar burner 6 row L 410mm W 495mm H 125mm tilting bratt pan

Bar burner 6 row L 410mm W 495mm H 125mm tilting bratt pan

Ref: Pg:10 Item:003

Bar burner 6 row L 410mm W 495mm H 125mm tilting bratt pan

more info

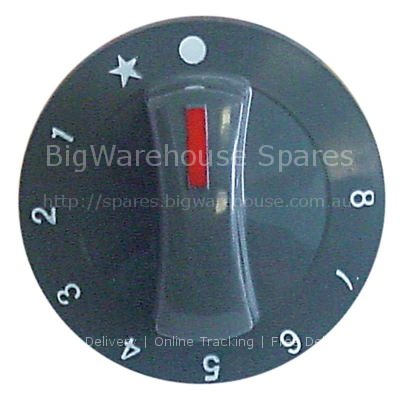

Knob gas thermostat 1-8 ø 71mm shaft ø 6x4.6mm shaft flat upper

Knob gas thermostat 1-8 ø 71mm shaft ø 6x4.6mm shaft flat upper

Ref: Pg:13 Item:003

Knob gas thermostat 1-8 ø 71mm shaft ø 6x4.6mm shaft flat upper

more info

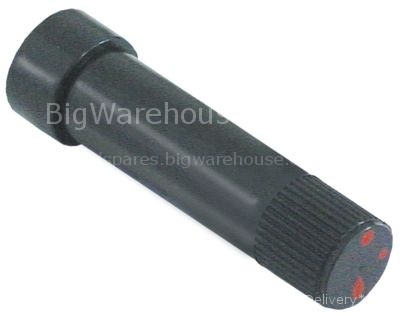

Knob extension L 75mm suitable for NOVASIT

Knob extension L 75mm suitable for NOVASIT

Ref: Pg:10 Item:022

Knob extension L 75mm suitable for NOVASIT

more info
Bolt M.5x15

Bolt M.5x15

Ref: Pg:2 Item:002

Bolt M.5x15

more info
Displaying 101 to 120 (of 212 products)
