Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
916077 Ver:201502- Parts List
Pump inlet ø 28mm outlet ø 22/27mm type CF 3091 230V 60Hz 1 phas
Pump inlet ø 28mm outlet ø 22/27mm type CF 3091 230V 60Hz 1 phas
Flat gasket rubber ED ø 109mm ID ø 86mm thickness 2,5mm Qty 1 pc
Flat gasket rubber ED ø 109mm ID ø 86mm thickness 2,5mm Qty 1 pc
O-ring EPDM thickness 2,62mm ID ø 82,22mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 82,22mm Qty 1 pcs

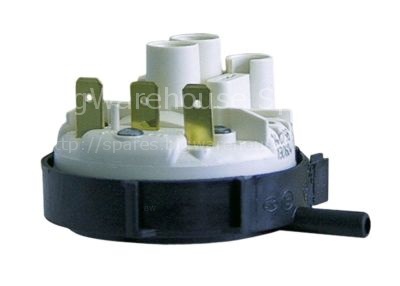

Pressure control pressure range 50/30mbar connection 6mm ø 58mm
Pressure control pressure range 50/30mbar connection 6mm ø 58mm
Formed hose ED ø 29mm hose int. ø 21mm warewashing
Formed hose ED ø 29mm hose int. ø 21mm warewashing
Formed hose ext. ø 30 D1 ø 25mm D2 ø 11mm L 860mm
Formed hose ext. ø 30 D1 ø 25mm D2 ø 11mm L 860mm

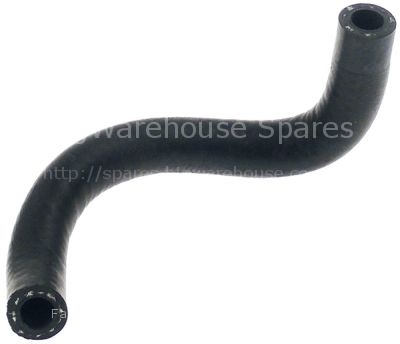

Formed hose ID ø 10mm hose ext. ø 17mm ED ø 17mm hose int. ø 10m
Formed hose ID ø 10mm hose ext. ø 17mm ED ø 17mm hose int. ø 10m

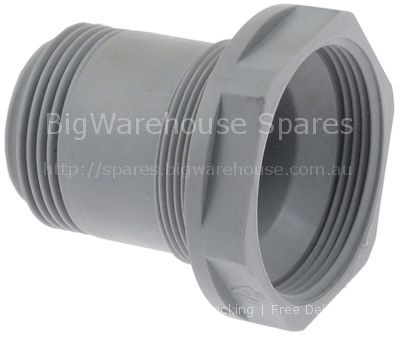

Extension for salt tank Qty 1 pcs L 78mm ID ø 38mm
Extension for salt tank Qty 1 pcs L 78mm ID ø 38mm

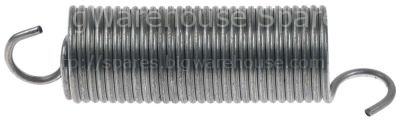

Tension spring ø 21mm L1 58mm wire gauge ø 2mm L2 13mm L3 13mm t
Tension spring ø 21mm L1 58mm wire gauge ø 2mm L2 13mm L3 13mm t
Displaying 41 to 60 (of 145 products)
