Parts List

Exploded diagrams, Schematics and other documents

Click on an image to enlarge the exploded view

GASTRO-900 Ver:Rev.04 Parts List

  • Version
O-ring EPDM thickness 2,62mm ID ø 39,34mm Qty 1 pcs

O-ring EPDM thickness 2,62mm ID ø 39,34mm Qty 1 pcs

Ref: Pg:3 Item:

O-ring EPDM thickness 2,62mm ID ø 39,34mm Qty 1 pcs

more info
Pump inlet ø 60mm outlet ø 50/30mm type 2233.B140 230V 50Hz 1 ph

Pump inlet ø 60mm outlet ø 50/30mm type 2233.B140 230V 50Hz 1 ph

Ref: Pg:3 Item:

Pump inlet ø 60mm outlet ø 50/30mm type 2233.B140 230V 50Hz 1 ph

more info
Wash arm bearing mounting pos. lower thread M10 ø 39mm H 36mm

Wash arm bearing mounting pos. lower thread M10 ø 39mm H 36mm

Ref: Pg:3 Item:

Wash arm bearing mounting pos. lower thread M10 ø 39mm H 36mm

more info
Rocker switch mounting measurements 30x22mm green 2CO 250V 16A i

Rocker switch mounting measurements 30x22mm green 2CO 250V 16A i

Ref: Pg:1 Item:

Rocker switch mounting measurements 30x22mm green 2CO 250V 16A i

more info
Formed hose dishwasher straight mounting pos. upper equiv. no. 1

Formed hose dishwasher straight mounting pos. upper equiv. no. 1

Ref: Pg:3 Item:

Formed hose dishwasher straight mounting pos. upper equiv. no. 1

more info
Air trap H 56mm

Air trap H 56mm

Ref: Pg:1 Item:

Air trap H 56mm

more info
End cap

End cap

Ref: Pg:3 Item:

End cap

more info
Pump inlet ø 60mm outlet ø 48mm type T75 230V 50Hz 1 phase 0,55k

Pump inlet ø 60mm outlet ø 48mm type T75 230V 50Hz 1 phase 0,55k

Ref: Pg:3 Item:

Pump inlet ø 60mm outlet ø 48mm type T75 230V 50Hz 1 phase 0,55k

more info
Grub screw L 20mm M5

Grub screw L 20mm M5

Ref: Pg:1 Item:

Grub screw L 20mm M5

more info
Tension spring ø 20mm total length 140mm wire gauge ø 2,5mm for

Tension spring ø 20mm total length 140mm wire gauge ø 2,5mm for

Ref: Pg:1 Item:

Tension spring ø 20mm total length 140mm wire gauge ø 2,5mm for

more info
Blank nozzle

Blank nozzle

Ref: Pg:3 Item:

Blank nozzle

more info
Door pin L 580mm ø 8mm

Door pin L 580mm ø 8mm

Ref: Pg:1 Item:

Door pin L 580mm ø 8mm

more info
Rocker switch mounting measurements 30x22mm green 1CO/indicator

Rocker switch mounting measurements 30x22mm green 1CO/indicator

Ref: Pg:1 Item:

Rocker switch mounting measurements 30x22mm green 1CO/indicator

more info
Wash arm support complete mounting pos. lower for Dihr

Wash arm support complete mounting pos. lower for Dihr

Ref: Pg:3 Item:

Wash arm support complete mounting pos. lower for Dihr

more info
Wash arm support mounting pos. lower ø 48mm

Wash arm support mounting pos. lower ø 48mm

Ref: Pg:3 Item:

Wash arm support mounting pos. lower ø 48mm

more info

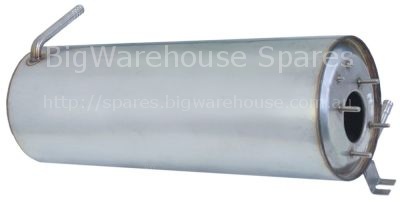

Boiler ø 140mm L 390mm

Boiler ø 140mm L 390mm

Ref: Pg:1 Item:

Boiler ø 140mm L 390mm

more info
Extension for wash arm support

Extension for wash arm support

Ref: Pg:3 Item:

Extension for wash arm support

more info
Wash arm support mounting pos. upper

Wash arm support mounting pos. upper

Ref: Pg:3 Item:

Wash arm support mounting pos. upper

more info
Boiler ø 140mm L 390mm

Boiler ø 140mm L 390mm

Ref: Pg:1 Item:

Boiler ø 140mm L 390mm

more info
Displaying 81 to 100 (of 134 products)
