OEB10.10-3NPE-400V Ver:200405- Parts List

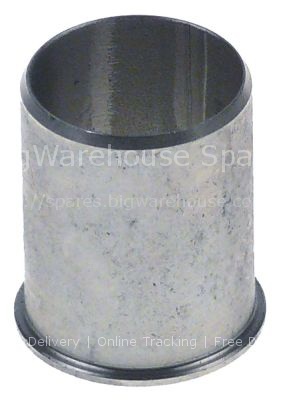

Sleeve for drain pump bore ø 18mm D1 ø 20mm D2 ø 22mm L 25mm SS
Sleeve for drain pump bore ø 18mm D1 ø 20mm D2 ø 22mm L 25mm SS

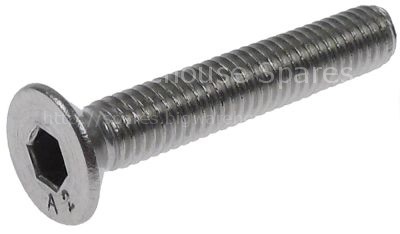

Countersunk screw thread M6 L 30mm SS DIN 7991/ISO 10642 Qty 1 p
Countersunk screw thread M6 L 30mm SS DIN 7991/ISO 10642 Qty 1 p

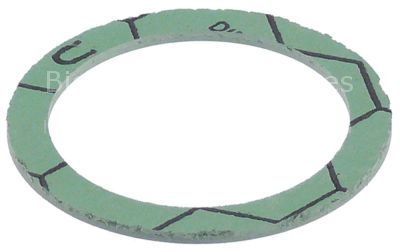

Gasket paper ED ø 54mm ID ø 42,5mm thickness 2mm Qty 1 pcs ø 1 1
Gasket paper ED ø 54mm ID ø 42,5mm thickness 2mm Qty 1 pcs ø 1 1
Heating element 9900W 230V heating circuits 3 L 415mm W 65mm H 3
Heating element 9900W 230V heating circuits 3 L 415mm W 65mm H 3
Injection nozzle with pressure switch and monometer bore ø 0,6mm
Injection nozzle with pressure switch and monometer bore ø 0,6mm

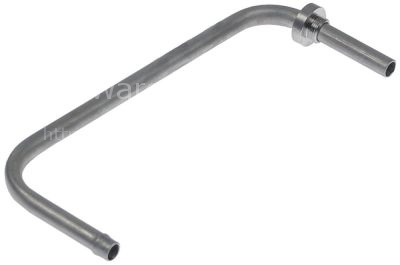

Injection pipe for combi-steamer L 210mm H 80mm thread M14x1 ø 1
Injection pipe for combi-steamer L 210mm H 80mm thread M14x1 ø 1
Knob ø 44mm shaft flat special for combi-steamer
Knob ø 44mm shaft flat special for combi-steamer
Gasket copper ED ø 19,9mm ID ø 14,3mm thickness 2mm Qty 1 pcs
Gasket copper ED ø 19,9mm ID ø 14,3mm thickness 2mm Qty 1 pcs
Spray gun for appliances 1/2" ET type ECHTERMANN
Spray gun for appliances 1/2" ET type ECHTERMANN
Flat gasket fibre ED ø 19mm ID ø 10,5mm thickness 1,5mm for thre
Flat gasket fibre ED ø 19mm ID ø 10,5mm thickness 1,5mm for thre
Core temperature probe thermocouple K (NiCr-Ni) cable PTFE probe
Core temperature probe thermocouple K (NiCr-Ni) cable PTFE probe
Side bolts thread M5 L 15mm Qty 1 pcs intake hexagonal
Side bolts thread M5 L 15mm Qty 1 pcs intake hexagonal
Displaying 81 to 100 (of 325 products)
