Parts List
Exploded diagrams, Schematics and other documents
Click on an image to enlarge the exploded view
F2 Ver:198406- Parts List
Hose clamp ø 32-50mm width 9mm Qty 5 pcs DIN 3017
Hose clamp ø 32-50mm width 9mm Qty 5 pcs DIN 3017
Knob switch zero mark ø 45mm shaft ø 5x5mm black
Knob switch zero mark ø 45mm shaft ø 5x5mm black
Nozzle for rinse arm mounting pos. right/left
Nozzle for rinse arm mounting pos. right/left
O-ring EPDM thickness 3,53mm ID ø 37,69mm Qty 1 pcs
O-ring EPDM thickness 3,53mm ID ø 37,69mm Qty 1 pcs
Blank nozzle mounting pos. centre for wash arm
Blank nozzle mounting pos. centre for wash arm
Rotary switch 2 0-1 sets of contacts 2 type CA0120002 380V 12A s
Rotary switch 2 0-1 sets of contacts 2 type CA0120002 380V 12A s
O-ring EPDM thickness 2,62mm ID ø 13,1mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 13,1mm Qty 1 pcs
Microswitch with plunger thread M10x1 thread L 12mm 250V 16A 1CO
Microswitch with plunger thread M10x1 thread L 12mm 250V 16A 1CO
Boiler ø 160mm L 500mm capacity 10l flange 3 hole flange inlet ø
Boiler ø 160mm L 500mm capacity 10l flange 3 hole flange inlet ø
O-ring EPDM thickness 5,34mm ID ø 81,92mm Qty 1 pcs
O-ring EPDM thickness 5,34mm ID ø 81,92mm Qty 1 pcs

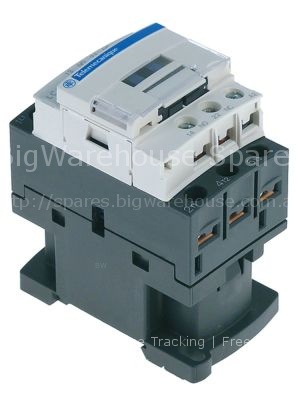

Power contactor resistive load 25A 230VAC (AC3/400V) 9A/4kW main
Power contactor resistive load 25A 230VAC (AC3/400V) 9A/4kW main
Displaying 41 to 60 (of 121 products)
