CB955A-MBM Parts List

  • Version
Timer CDC 11904 engines 1 chambers 4 operation time 15min 115V 6

Timer CDC 11904 engines 1 chambers 4 operation time 15min 115V 6

Ref: Pg:5 Item:011

Timer CDC 11904 engines 1 chambers 4 operation time 15min 115V 6

more info
Screw cap CASTEL size 1/4" SAE for Schrader valve

Screw cap CASTEL size 1/4" SAE for Schrader valve

Ref: Pg:3 Item:013

Screw cap CASTEL size 1/4" SAE for Schrader valve

more info
Compressor coolant R404A type AEZ4425Z 220-240V 50Hz 9,8kg 1/5HP

Compressor coolant R404A type AEZ4425Z 220-240V 50Hz 9,8kg 1/5HP

Ref: Pg:3 Item:010

Compressor coolant R404A type AEZ4425Z 220-240V 50Hz 9,8kg 1/5HP

more info
Schrader valve CASTEL 8394/B R22

Schrader valve CASTEL 8394/B R22

Ref: Pg:3 Item:012

Schrader valve CASTEL 8394/B R22

more info
Drain fitting straight connection 24mm for ice maker

Drain fitting straight connection 24mm for ice maker

Ref: Pg:4 Item:016

Drain fitting straight connection 24mm for ice maker

more info
Equipment foot tube ø 50mm thread M10 thread L 12mm H 130-180mm

Equipment foot tube ø 50mm thread M10 thread L 12mm H 130-180mm

Ref: Pg:2 Item:005

Equipment foot tube ø 50mm thread M10 thread L 12mm H 130-180mm

more info
Fan motor 20W 230V 50/60Hz L1 42mm L3 91,5mm W 83mm feet depth 8

Fan motor 20W 230V 50/60Hz L1 42mm L3 91,5mm W 83mm feet depth 8

Ref: Pg:5 Item:002

Fan motor 20W 230V 50/60Hz L1 42mm L3 91,5mm W 83mm feet depth 8

more info
Spray arm L 670mm nozzles 11 for ice-cube type C

Spray arm L 670mm nozzles 11 for ice-cube type C

Ref: Pg:4 Item:004

Spray arm L 670mm nozzles 11 for ice-cube type C

more info
Solenoid valve single angled 230VAC inlet 3/4" outlet 11,5mm out

Solenoid valve single angled 230VAC inlet 3/4" outlet 11,5mm out

Ref: Pg:5 Item:006

Solenoid valve single angled 230VAC inlet 3/4" outlet 11,5mm out

more info
Nut for drain assembly

Nut for drain assembly

Ref: Pg:4 Item:014

Nut for drain assembly

more info
Spray arm L 670mm nozzles 18 for ice-cube type D

Spray arm L 670mm nozzles 18 for ice-cube type D

Ref: Pg:4 Item:004

Spray arm L 670mm nozzles 18 for ice-cube type D

more info
Formed hose U-shape for ice-cube maker ID ø 18/27mm ED ø 25/32mm

Formed hose U-shape for ice-cube maker ID ø 18/27mm ED ø 25/32mm

Ref: Pg:4 Item:025

Formed hose U-shape for ice-cube maker ID ø 18/27mm ED ø 25/32mm

more info
Timer CDC 11904 engines 1 chambers 4 operation time 18min 230V 5

Timer CDC 11904 engines 1 chambers 4 operation time 18min 230V 5

Ref: Pg:5 Item:011

Timer CDC 11904 engines 1 chambers 4 operation time 18min 230V 5

more info
Silicone hose ID ø 16mm ED ø 23mm L 0,61m t.max. 200°C for ice-c

Silicone hose ID ø 16mm ED ø 23mm L 0,61m t.max. 200°C for ice-c

Ref: Pg:4 Item:022

Silicone hose ID ø 16mm ED ø 23mm L 0,61m t.max. 200°C for ice-c

more info
Ice chute

Ice chute

Ref: Pg:4 Item:001

Ice chute

more info
Spray arm L 670mm nozzles 15 for ice-cube type A

Spray arm L 670mm nozzles 15 for ice-cube type A

Ref: Pg:4 Item:004

Spray arm L 670mm nozzles 15 for ice-cube type A

more info
Silicone hose ID ø 13mm ED ø 19mm L 0,35m t.max. 200°C for ice-c

Silicone hose ID ø 13mm ED ø 19mm L 0,35m t.max. 200°C for ice-c

Ref: Pg:4 Item:015

Silicone hose ID ø 13mm ED ø 19mm L 0,35m t.max. 200°C for ice-c

more info
Cover

Cover

Ref: Pg:3 Item:007

Cover

more info
Formed hose U-shape for ice-cube maker ID ø 17/23mm ED ø 25/31mm

Formed hose U-shape for ice-cube maker ID ø 17/23mm ED ø 25/31mm

Ref: Pg:4 Item:026

Formed hose U-shape for ice-cube maker ID ø 17/23mm ED ø 25/31mm

more info

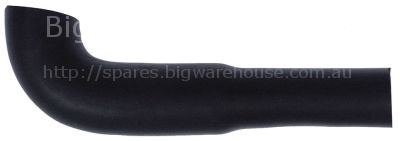

Formed hose L-shape for ice-cube maker ID ø 13mm ED ø 19mm L 125

Formed hose L-shape for ice-cube maker ID ø 13mm ED ø 19mm L 125

Ref: Pg:4 Item:015

Formed hose L-shape for ice-cube maker ID ø 13mm ED ø 19mm L 125

more info
