LC80 Ver:20150917- Parts List
O-ring EPDM thickness 3,53mm ID ø 53,57mm Qty 1 pcs
O-ring EPDM thickness 3,53mm ID ø 53,57mm Qty 1 pcs

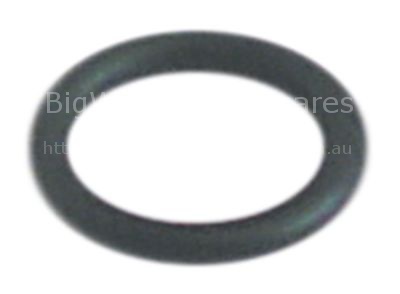

O-ring EPDM thickness 2,62mm ID ø 13,1mm Qty 1 pcs
O-ring EPDM thickness 2,62mm ID ø 13,1mm Qty 1 pcs
Wash arm support mounting pos. lower D1 ø 32mm D2 ø 39mm D3 ø 42
Wash arm support mounting pos. lower D1 ø 32mm D2 ø 39mm D3 ø 42

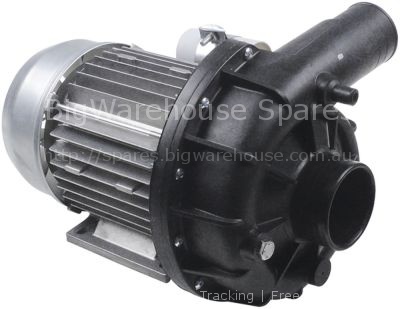

Pump inlet ø 62mm outlet ø 50mm type AM5225SX 230V 50Hz 1 phase
Pump inlet ø 62mm outlet ø 50mm type AM5225SX 230V 50Hz 1 phase
Displaying 61 to 80 (of 128 products)
