CF103 Parts List
Handle L 30mm W 10mm hole distance 18mm Qty 1 pcs
Handle L 30mm W 10mm hole distance 18mm Qty 1 pcs
Compression spring ø 6,4mm L 16mm wire gauge ø 0,8mm
Compression spring ø 6,4mm L 16mm wire gauge ø 0,8mm
Thermostat t.max. 60°C temperature range fixed 60°C 1-pole 1CO 1
Thermostat t.max. 60°C temperature range fixed 60°C 1-pole 1CO 1
Retaining ring E D1 ø 6mm D2 ø 12mm SS DIN 6799 thickness 0,7mm
Retaining ring E D1 ø 6mm D2 ø 12mm SS DIN 6799 thickness 0,7mm
Solenoid valve double angled 230VAC inlet 3/4" outlet 10.5mm DN1
Solenoid valve double angled 230VAC inlet 3/4" outlet 10.5mm DN1

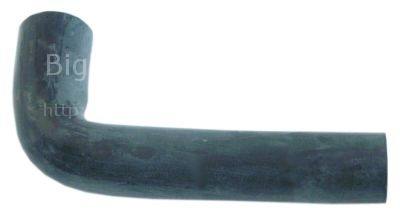

Formed hose warewashing L-shape equiv. no. 10542
Formed hose warewashing L-shape equiv. no. 10542
Displaying 81 to 100 (of 176 products)
